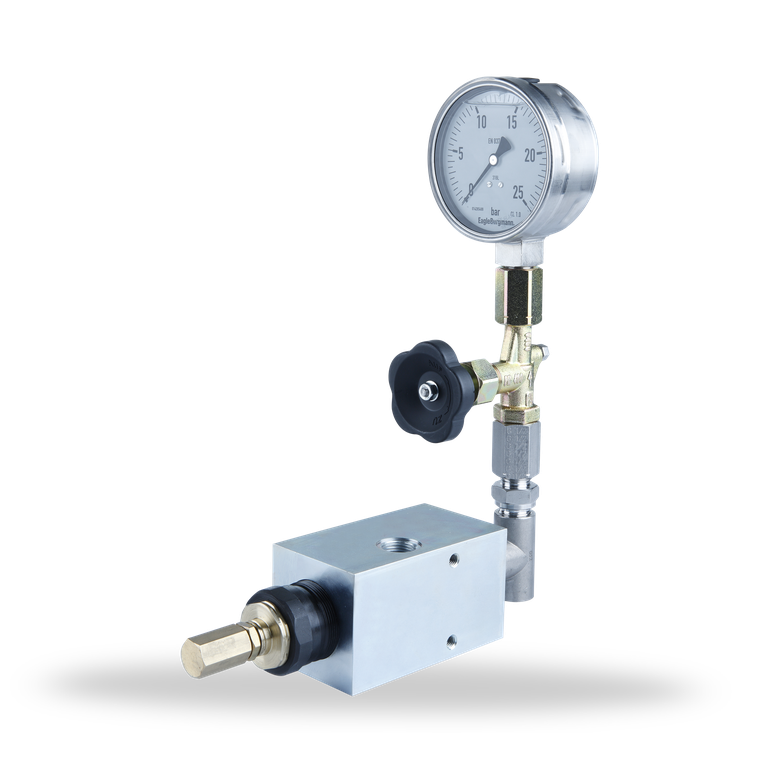

DRE Pressure control unit
DRE Pressure control unit
Features
The pressure control unit is used for setting different levels of barrier pressure when supplying several individual mechanical seals via an SPA with a VTE. There is a choice of four basic types.
Advantages
- Suitable for hydraulic oil
- Max. flow rate 23 l/min.
- Max. setting pressure of up to 160 bar
Recommended applications
- Chemical industry
- Petrochemical industry
- Refining technology
- Oil and gas industry
Product variants
| Designation | Max. setting pressure | Max. flow rate (l/min.) | Measuring range |
|---|---|---|---|
| DRE025 | 25 bar (362 PSI) | 23 | 0 ... 25 bar |
| DRE050 | 50 bar (725 PSI) | 23 | 0 ... 60 bar |
| DRE100 | 100 bar (1,450 PSI) | 23 | 0 ... 100 bar |
| DRE160 | 160 bar (2,320 PSI) | 23 | 0 ... 160 bar |
Similar products

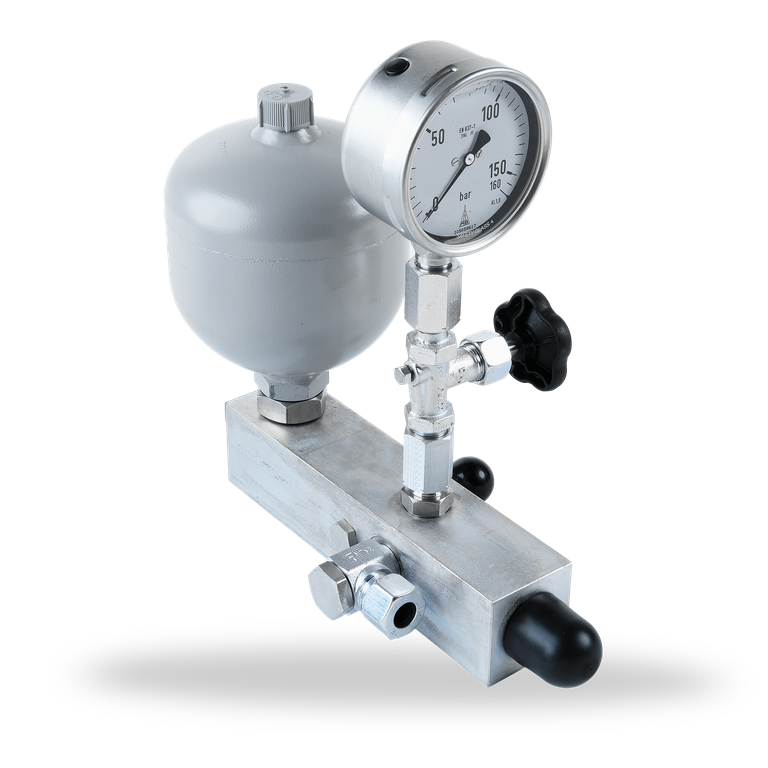

DHE Pressure accumulator
The DHE consists of an accumulator, a pressure gauge with a shut-off valve and a check valve. The DHE can also be retrofitted to a SPA (Conversion kit no.: DHE140/R001-00).
VTE Distribution unit
The distribution unit is used when two or more mechanical seals are to be supplied from a single barrier fluid unit of the SPA1000, SPA2000 or SPA3000 range. The VTE is suitable for hydraulic oil as barrier medium. It is delivered as a separate unit which the customer must install in the pipe work at a suitable position. There is a choice of two basic types:
VTE02/M...: Distribution unit for supplying two or more mechanical seals in between bearing pumps.
VTE../S...: Distribution unit for supplying two or more mechanical seals in different pumps. It contains an overflow valve and one flow control valve per seal. DRE pressure control units are necessary if different barrier pressures are used on the mechanical seals.
VTE02/M...: Distribution unit for supplying two or more mechanical seals in between bearing pumps.
VTE../S...: Distribution unit for supplying two or more mechanical seals in different pumps. It contains an overflow valve and one flow control valve per seal. DRE pressure control units are necessary if different barrier pressures are used on the mechanical seals.
