Quench systems
QFT6
QFT6
Quench system
QFT6000A4

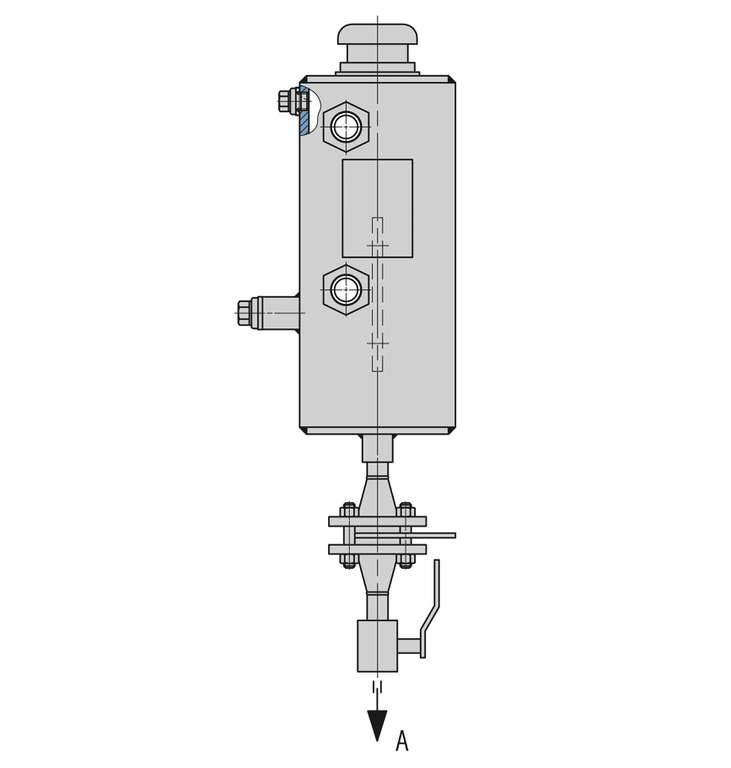

A To mechanical seal
A To mechanical seal
QFT6
Quench system
Features
Quench fluid supply systems are used with single mechanical seals. They act as a convenient fluid reservoir. The QFT6000A4 stainless steel tank is equipped with a sight-glass for monitoring the MIN/MAX filling level and can be fastened with a lug fixture.
Advantages
- Sight-glass for MIN/MAX monitoring has a large indicator area
- Filling is possible by filling filter or a separate pipe connection
- Combined filling and ventilation filter in the quench fluid tank for reliable operation
- Tank made of 1.4571: high resistance to corrosive media
Standards and approvals
- API 682 / ISO 21049
- API 682 4th ed. Cat. 2/3 - 1CW-FL
Recommended applications
- Refining technology
- Oil and gas industry
- Petrochemical industry
- Chemical industry
- Power plant technology
Functional description
Quench fluid systems (Plan 51) are employed to:
- Absorb leakage
- Monitor the leakage rate (e.g., through periodic reading of the level in the tank)
- Prevent icing
- Protect against dry running
- Stabilize the lubricating film
- Exclude air from the media in order to prevent a reaction with oxygen in the air
- Absorb leakage
- Monitor the leakage rate (e.g., through periodic reading of the level in the tank)
- Prevent icing
- Protect against dry running
- Stabilize the lubricating film
- Exclude air from the media in order to prevent a reaction with oxygen in the air
Recommended piping plans
Product variants
| Designation | QFT6000M001-D0 |
|---|---|
| Design code | n/a |
| Volume, vessel (liters) | 3 |
| Allowable pressure | Pressureless |
| Allowable temperature1) | -29 °C … +100 °C (-20 °F … +212 °F) |
| Metal parts (tank) | 316Ti |
| Filling filter | Glass-fibre-reinforced polyamide |
| Sight-glass | Borosilicate |
| Gasket | Spiraltherm® |
Other versions on request.
1) Design data, permissible working values depend on the actual conditions of service.
